PRODUCTS | SCBA Compartments

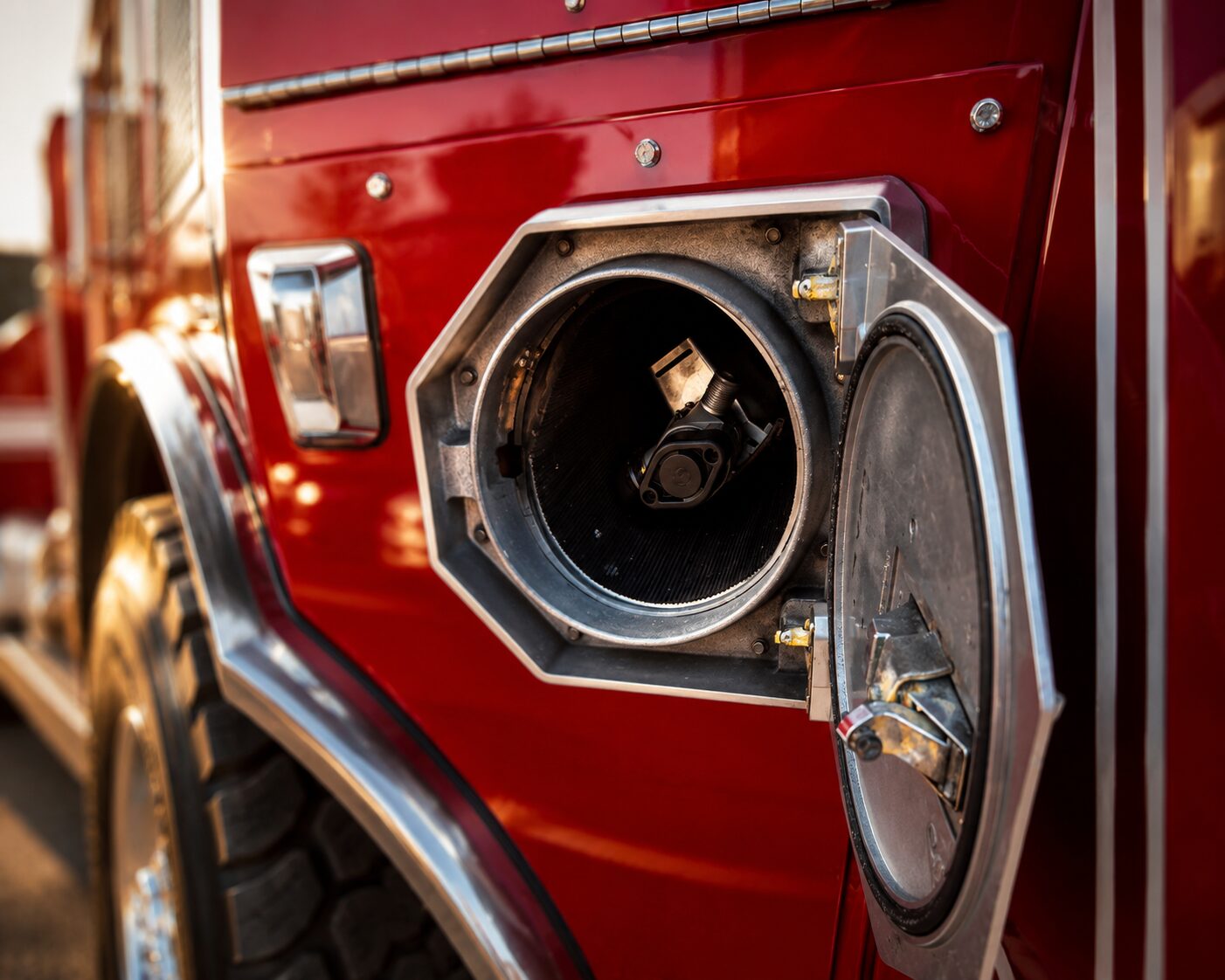

SCBA Compartments
SCBA cylinder compartments and doors machined, finished, and assembled to hold your bottles secure and deploy them fast — single, double, and triple-cylinder, in the door style, length, latch, and finish your apparatus calls for.
Choose Your Configuration
Six Core Configurations

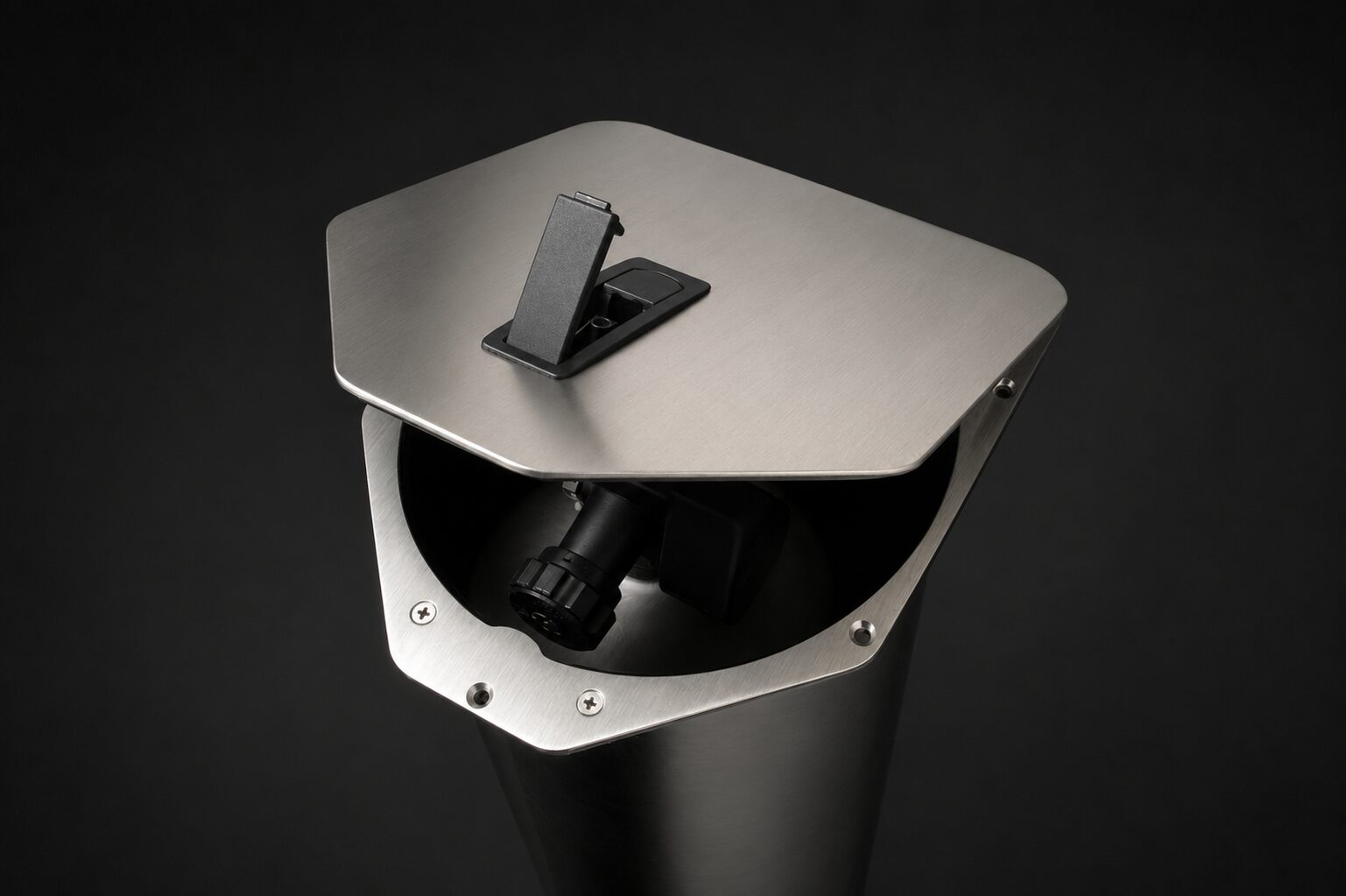

Single (1) Cylinder
Available Options
SCBA Compartments Features
Built to Spec. Finished to Last.
Performance
- –Secure cylinder retention in transit
- –One-motion door release
- –Sealed against road spray & wash water
- –Brushed or polished finish
Configurations
- –Single, double & triple-cylinder
- –Drop-down, wide, custom & fuel-combo doors
- –Black sealed, black flush & chrome latches
- –Left, right, or fixed hinge
Installation
- –Machined to your compartment opening
- –23" to 26.5" door lengths
- –Ships retro-fit ready
- –Door & latch gaskets available
Full Part Reference
Every SCBA Configuration
68 part numbers across 6 configurations. Search or filter, then print or save the result as a PDF.
| Configuration | Part # | Length | Angle | Hinge | Latch | Accessories | Housing | Finish |
|---|---|---|---|---|---|---|---|---|
| Single (1) Cylinder | 101252-10 | 25" | 0° | LH / RH | Black, Sealed | — | — | Brushed |
| Single (1) Cylinder | 101252-14 | 26.5" | 0° | LH / RH | Black, Sealed | — | — | Brushed |
| Single (1) Cylinder | 101252-18 | 25" | 0° | LH / RH | Chrome | — | — | Brushed |
| Single (1) Cylinder | 101252-22 | 25" | 5° | Left | Black, Flush | — | — | Brushed |
| Single (1) Cylinder | 101252-24 | 26.5" | 0° | LH / RH | Black, Flush | — | — | Brushed |
| Single (1) Cylinder | 101252-28 | 25" | 5° | Left | Chrome | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-30 | 26.5" | 5° | Left | Black, Sealed | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-35 | 25" | 0° | LH / RH | Black, Sealed | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-39 | 25" | 5° | Right | Chrome | — | — | Brushed |
| Single (1) Cylinder | 101252-41 | 25" | 0° | LH / RH | Black, Flush | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-45 | 23" | 0° | LH / RH | Black, Flush | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-49 | 26.5" | 0° | LH / RH | Chrome | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-54 | 25" | 5° | Right | Black, Flush | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-11 | 25" | 0° | LH / RH | Black, Flush | — | — | Brushed |
| Single (1) Cylinder | 101252-15 | 26.5" | 0° | LH / RH | Chrome | — | — | Brushed |
| Single (1) Cylinder | 101252-21 | 25" | 5° | Right | Black, Flush | — | — | Brushed |
| Single (1) Cylinder | 101252-23 | 25" | 5° | Right | Black, Sealed | — | — | Brushed |
| Single (1) Cylinder | 101252-25 | 23" | 0° | LH / RH | Black, Flush | — | — | Brushed |
| Single (1) Cylinder | 101252-29 | 25" | 5° | Right | Chrome | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-31 | 26.5" | 5° | Right | Black, Sealed | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-38 | 25" | 5° | Left | Chrome | — | — | Brushed |
| Single (1) Cylinder | 101252-40 | 25" | 0° | LH / RH | Black, Sealed | Door Gasket, Latch Gasket | — | Brushed |
| Single (1) Cylinder | 101252-26 | 26.5" | 5° | Right | Black, Flush | Latch Gasket | — | Brushed |
| Single (1) Cylinder | 101252-27 | 26.5" | 5° | Left | Black, Flush | Latch Gasket | — | Brushed |
| Single (1) Cylinder | 101252-50 | 26.5" | 0° | LH / RH | Chrome | Door Gasket, Latch Gasket | — | Polished |
| Single (1) Cylinder | 101252-58 | 25" | 5° | Right | Black, Flush | Latch Gasket | — | Polished |
| Single (1) Cylinder | 101252-77 | 24.5" | 0° | LH / RH | Black, Flush | Door Gasket, Latch Gasket | — | Brushed |
| Single (1) Cylinder | 101252-63 | 26.5" | 0° | Right | Black, Sealed | Door Gasket, Latch Gasket | — | Brushed |
| Single (1) Cylinder | 101252-78 | 25" | 0° | LH / RH | Black, Flush | Door Gasket, Latch Gasket | — | Polished |
| Single (1) Cylinder | 101252-66 | 23" | 0° | LH / RH | Chrome | Door Gasket, Latch Gasket | — | Brushed |
| Single (1) Cylinder | 101252-44 | 26.5" | 0° | LH / RH | Black, Flush | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-46 | 26.5" | 0° | LH / RH | Black, Sealed | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-53 | 25" | 5° | Left | Black, Flush | Door Gasket | — | Brushed |
| Single (1) Cylinder | 101252-56 | 25" | 0° | LH / RH | Chrome | Door Gasket | — | Brushed |

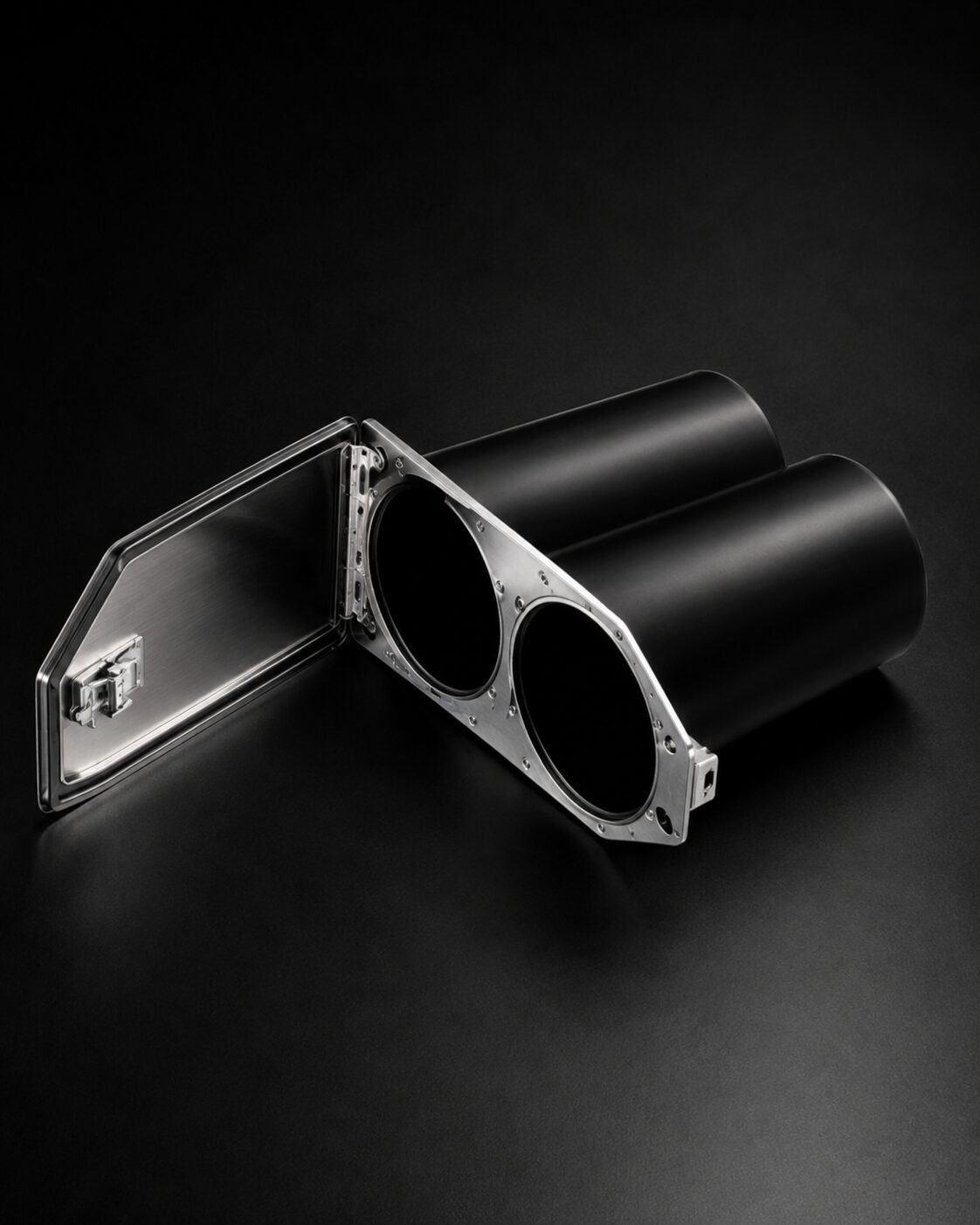

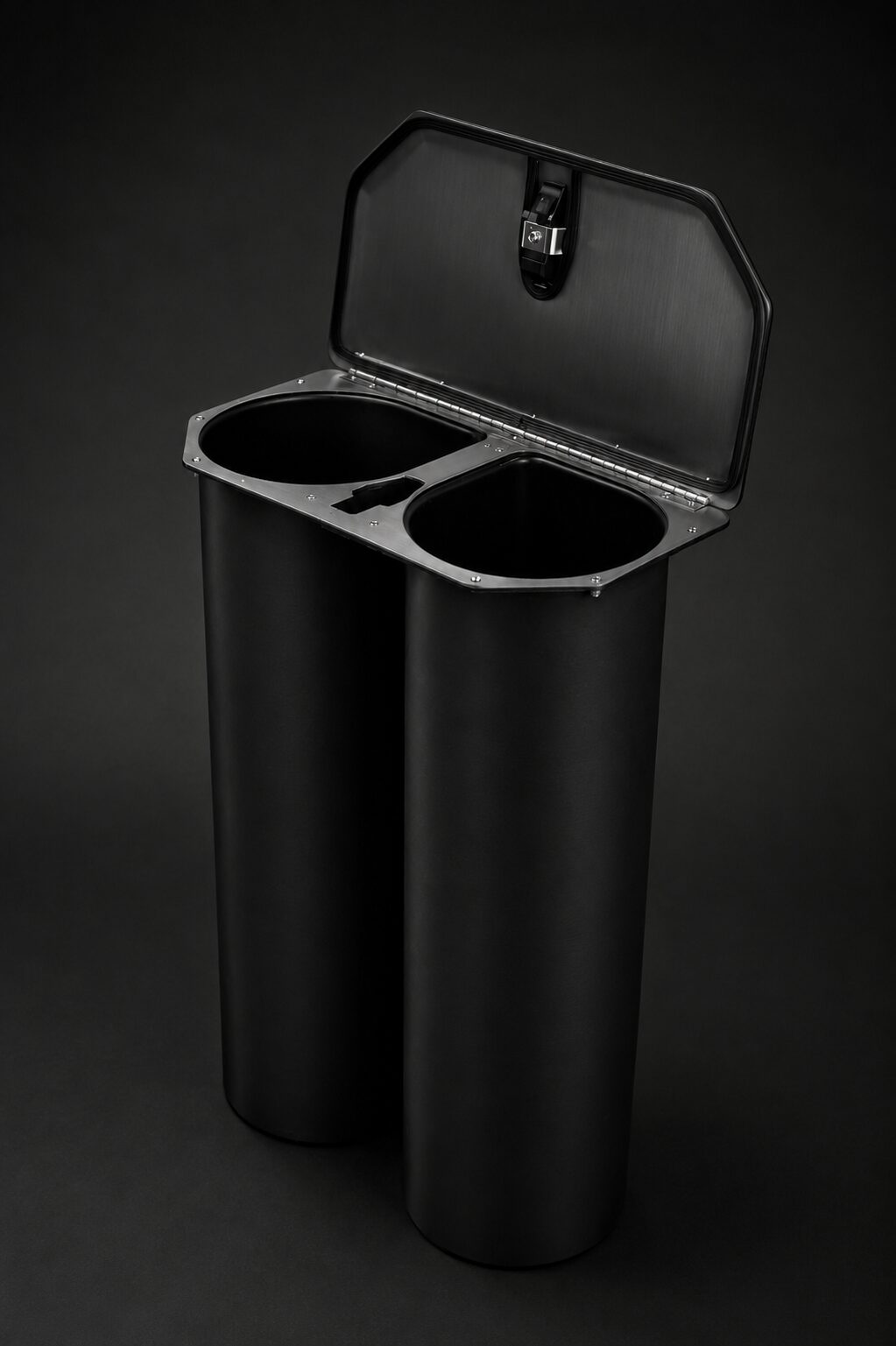

| Double (2) Cylinder — Wide Drop Down Door | 102069 | 26" | 0° | Bottom | Black, Flush | Door Gasket | — | Brushed |
| Double (2) Cylinder — Wide Drop Down Door | 102069-11 | 26" | 0° | Bottom | Chrome | Door Gasket | — | Brushed |
| Double (2) Cylinder — Wide Drop Down Door | 102069-10 | 26" | 0° | Bottom | Black, Flush | Door Gasket, Latch Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-10 | 25" | 0° | LH / RH | Black, Sealed | Door Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-12 | 25" | 0° | LH / RH | Chrome | Door Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-14 | 26.5" | 0° | LH / RH | Black, Flush | Door Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-18 | 25" | 0° | LH / RH | Chrome | Door Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-24 | 25" | 0° | LH / RH | Black, Flush | Door Gasket, Latch Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-26 | 26.5" | 0° | LH / RH | Black, Sealed | Door Gasket, Latch Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-28 | 26.5" | 0° | LH / RH | Chrome | Door Gasket, Latch Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-11 | 25" | 0° | LH / RH | Black, Flush | Door Gasket, Latch Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-13 | 26.5" | 0° | LH / RH | Black, Sealed | Latch Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-15 | 26.5" | 0° | LH / RH | Chrome | Latch Gasket | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-21 | 25" | 0° | LH / RH | Black, Sealed | — | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-25 | 25" | 0° | LH / RH | Black, Sealed | — | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-27 | 26.5" | 0° | LH / RH | Black, Flush | — | — | Brushed |
| Double (2) Cylinder — Wide Door | 101400-34 | 26.5" | 0° | LH / RH | Black, Sealed | — | — | Brushed |
| Double (2) Cylinder — Custom | 101895-10 | 26.5" | 0° | LH / RH | Chrome | Door Gasket | — | Brushed |
| Double (2) Cylinder — Custom | 101895-13 | 25" | 0° | LH / RH | Chrome | Door Gasket, Latch Gasket | — | Polished |
| Double (2) Cylinder — Custom | 101895-11 | 26.5" | 0° | LH / RH | Chrome | Door Gasket, Latch Gasket | — | Polished |

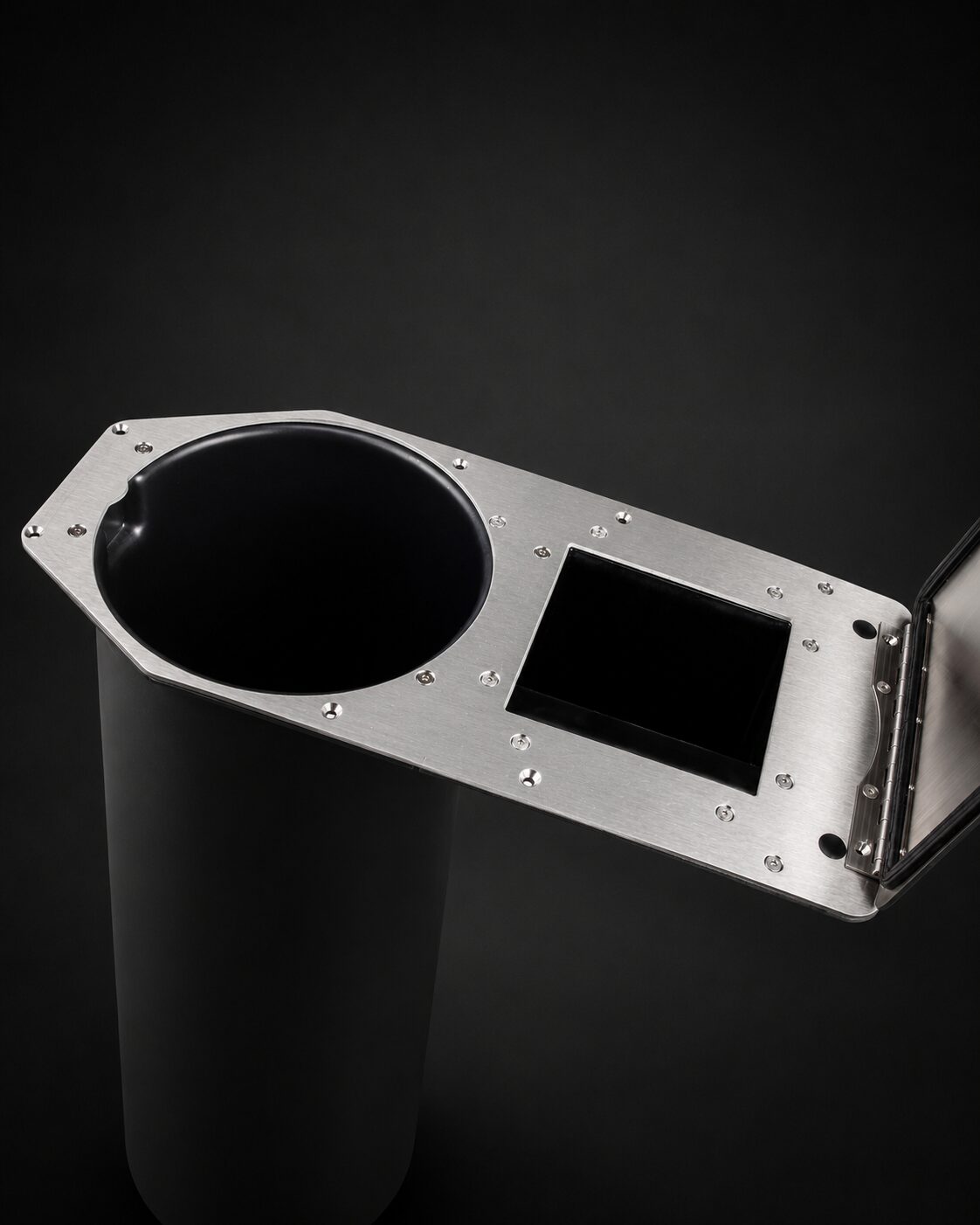

| Single (1) Cylinder & Fuel Door — & Fuel Door | 101846-10 | 25" | 0° | Right | Black, Sealed | Door Gasket | HDPE | Brushed |
| Single (1) Cylinder & Fuel Door — & Fuel Door | 101846-12 | 25" | 0° | Right | Black, Sealed | Door Gasket | HDPE | Brushed |
| Single (1) Cylinder & Fuel Door — & Fuel Door | 101846-14 | 25" | 0° | Right | Black, Sealed | Door Gasket | SS | Brushed |
| Single (1) Cylinder & Fuel Door — & Fuel Door | 101846-11 | 25" | 0° | Left | Black, Sealed | Latch Gasket | HDPE | Brushed |
| Single (1) Cylinder & Fuel Door — & Fuel Door | 101846-13 | 25" | 0° | Left | Black, Sealed | Latch Gasket | HDPE | Brushed |

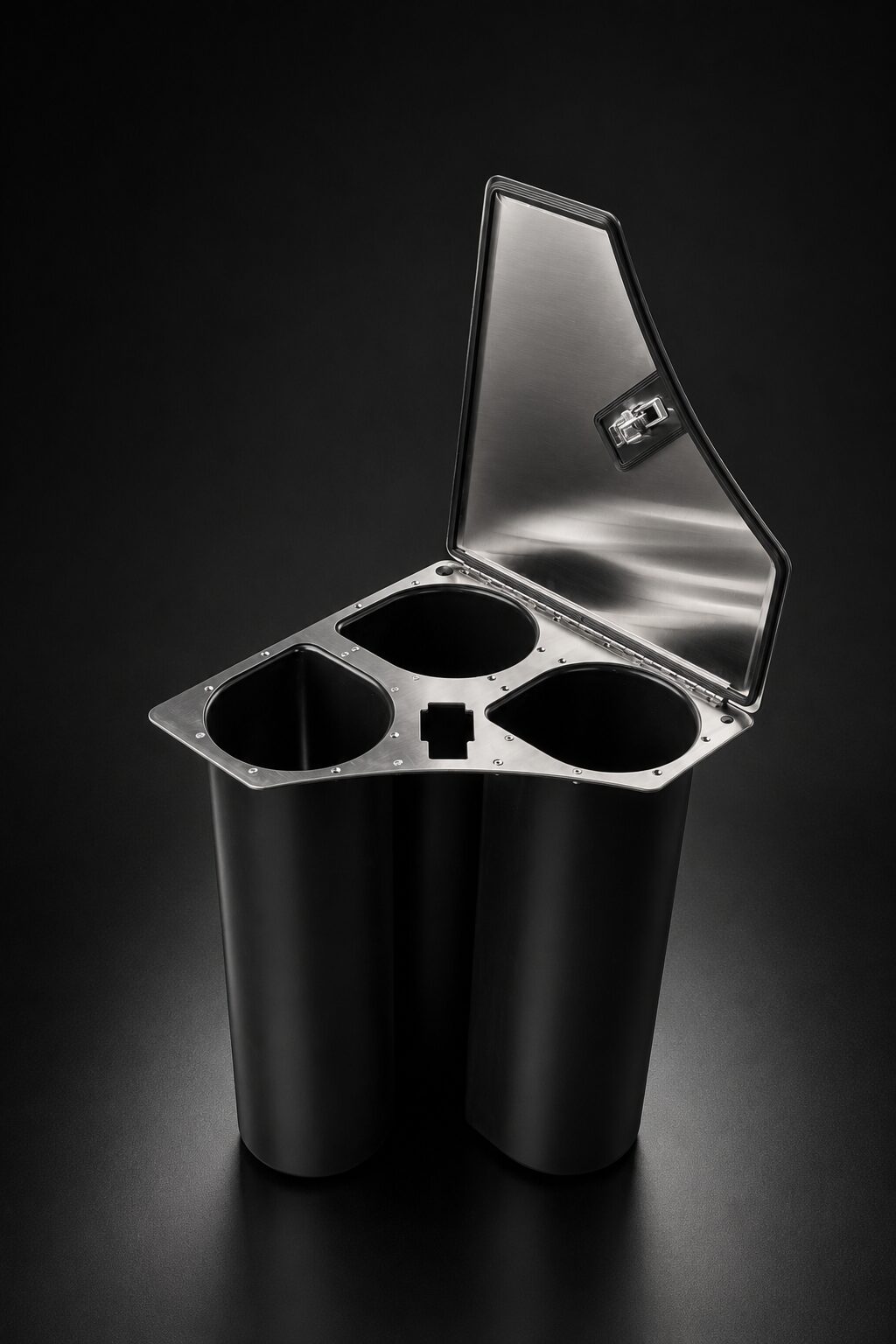

| Triple (3) Cylinder — Wide Door | 101411-10 | 25" | 0° | Left | Black, Sealed | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-12 | 25" | 0° | Left | Black, Flush | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-22 | 23" | 0° | Left | Black, Sealed | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-14 | 25" | 0° | Left | Chrome | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-27 | 25" | 0° | Right | Black, Sealed | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-11 | 25" | 0° | Right | Black, Flush | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-13 | 25" | 0° | Right | Black, Sealed | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-23 | 23" | 0° | Right | Chrome | — | — | Brushed |
| Triple (3) Cylinder — Wide Door | 101411-15 | 25" | 0° | Right | Chrome | — | — | Brushed |
* If a hinge location is not noted, the unit can be mounted either left- or right-hand. Latch: Black Sealed · Black Flush · Chrome. Finish: Brushed · Polished. Housing: HDPE · SS (stainless). Accessory column normalized from source — verify against master sheet.
PRODUCTS | Fuel Doors
Fuel Doors
Flush, weather-sealed fuel fill doors for fire apparatus — magnetic or push-button latch, HDPE or stainless steel, configured to your panel and fuel type.
Choose Your Configuration
Three Core Builds

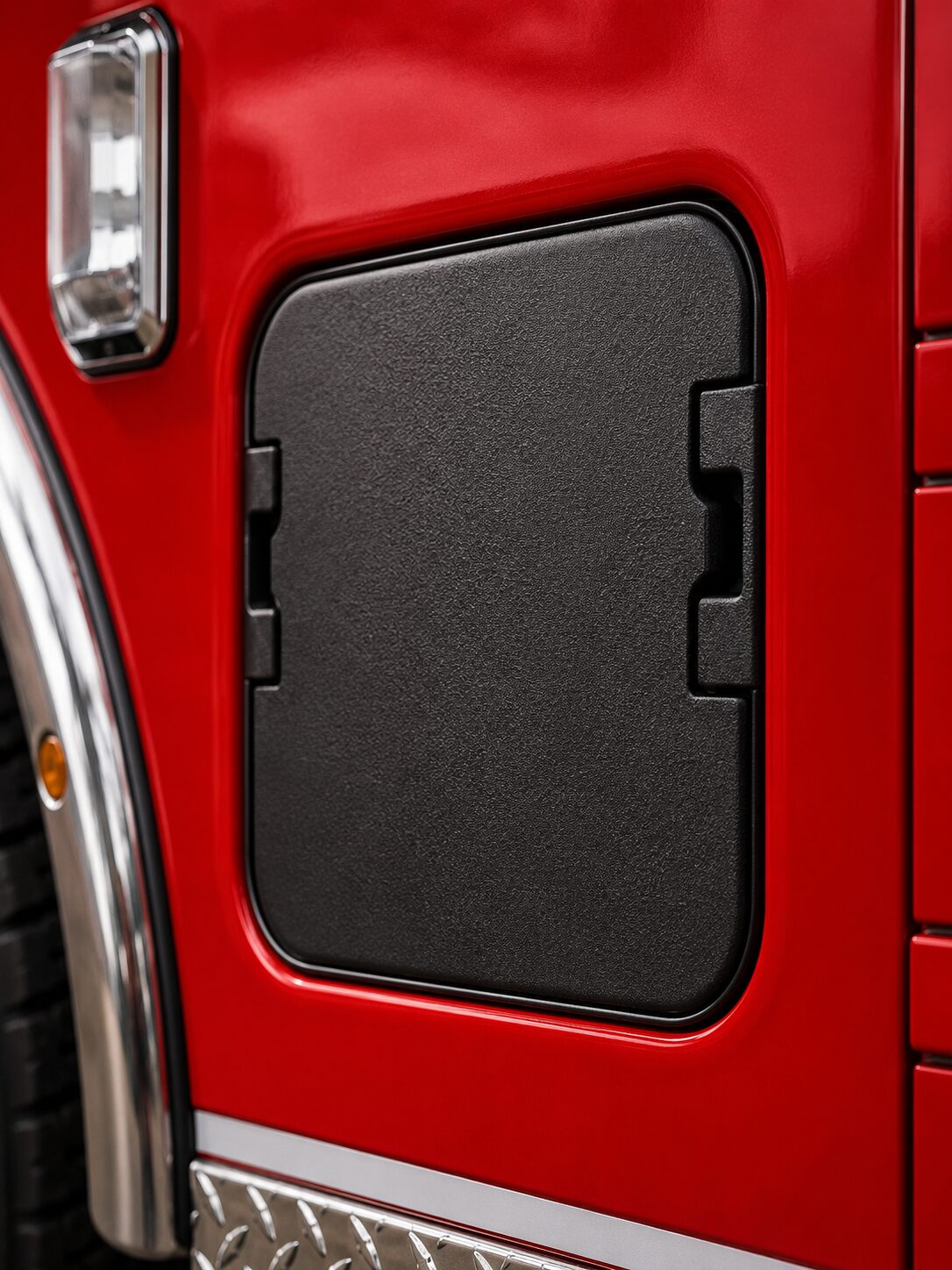

HDPE Magnetic Door
Available Options
Part Numbers
Fuel Doors Features
Built to Spec. Finished to Last.
Performance
- –Flush, weather-sealed door faces
- –Magnetic or push-button latch
- –Corrosion-proof hinge hardware
- –Holds tight through the wash cycle
Configurations

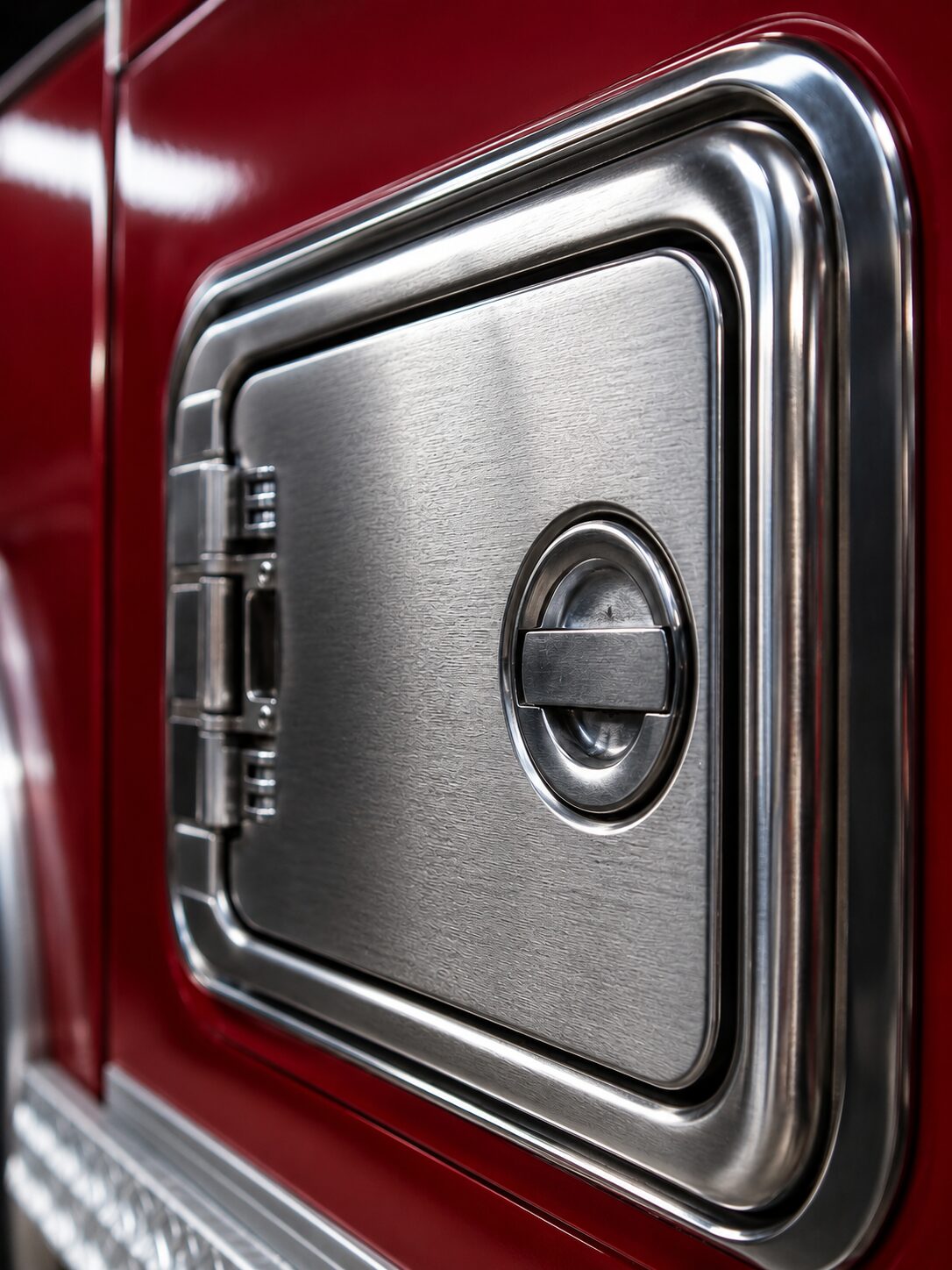

- –HDPE or stainless steel enclosure
- –Brushed or polished door finish
- –Right- or left-hand hinge
- –Gasket, drain elbow, filler neck, diesel cap
Installation
- –Ships retro-fit ready
- –Machined to your panel cutout
- –Weld-stud, rivet, or flange mount
- –Install template provided
Full Part Reference
15 Standard Configurations
Every part number ships built-to-order and retro-fit ready. Search the list, then print or save it as a PDF.
| Part # | Enclosure | Hinge | Latch | Accessory | Finish |
|---|---|---|---|---|---|
| 101426 | HDPE | LH | Magnetic | Gasket | Brushed |
| 101426-10 | HDPE | LH | Magnetic | SS fuel pipe + gasket | Brushed |
| 101426-11 | HDPE | LH | Magnetic | Gasket | Brushed |
| 101426-13 | HDPE | LH | Magnetic | Filler neck + diesel cap | Brushed |
| 101426-14 | Stainless | LH | Magnetic | Gasket + drain elbow | Brushed |
| 101426-15 | HDPE | LH | Magnetic | Gasket | Polished |
| 101426-17 | HDPE | RH | Magnetic | Drain elbow + gasket + filler pipe + diesel cap | Brushed |
| 101426-22 | HDPE | LH | Magnetic | Filler neck | Brushed |
| 101426-23 | HDPE | LH | Magnetic | Gasket | Brushed |
| 101426-24 | HDPE | LH | Magnetic | Gasket | Brushed |
| 101426-25 | HDPE | LH | Magnetic | Gasket | Brushed |

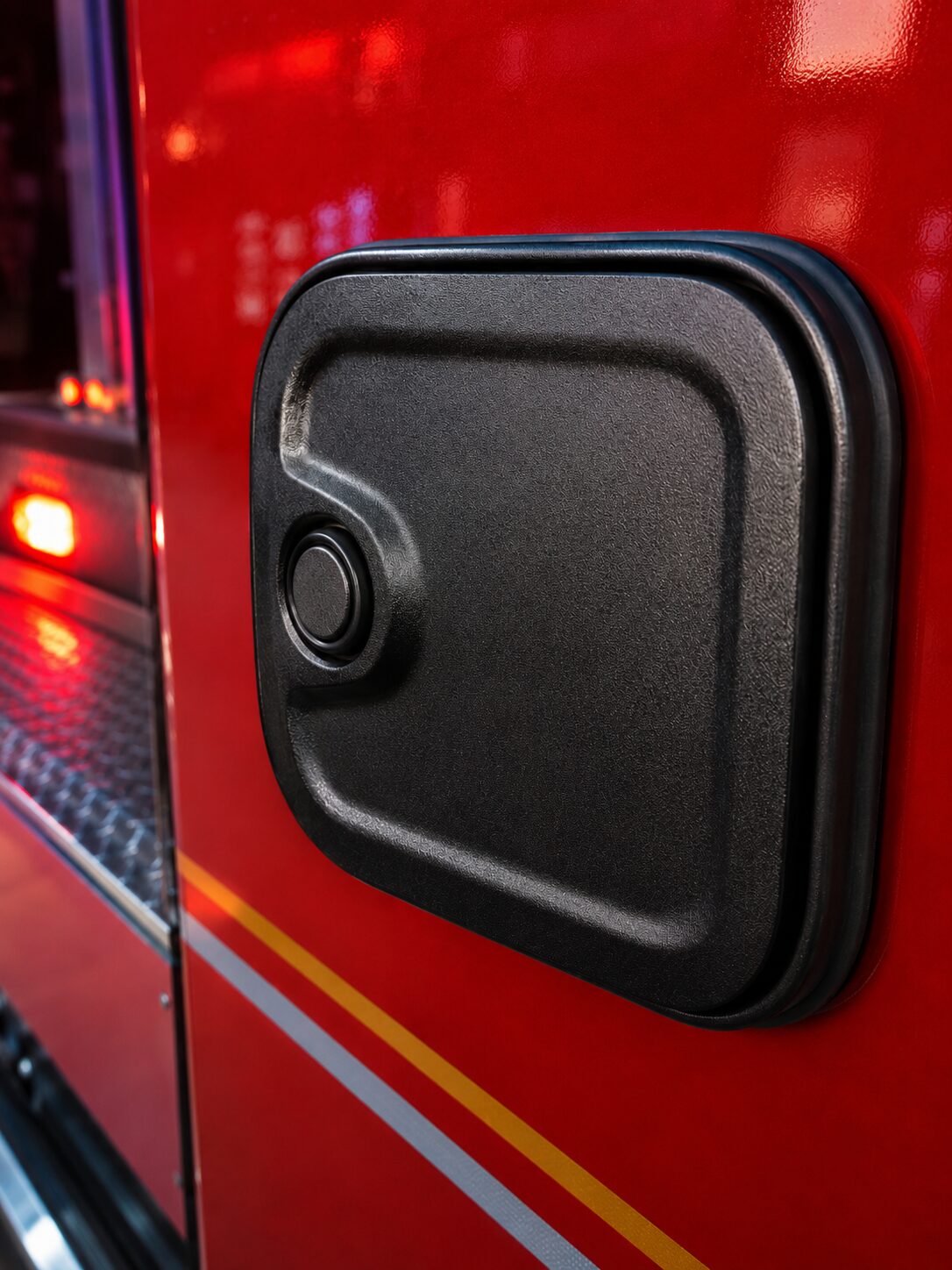

| 102101 | HDPE | LH | Push Button | Gasket + drain elbow | Brushed |
| 102101-10 | Stainless | LH | Push Button | Gasket | Brushed |
| 102101-11 | HDPE | RH | Push Button | Gasket + drain elbow | Brushed |
| 102101-12 | HDPE | LH | Push Button | Drain elbow + gasket + fill pipe | Brushed |
PRODUCTS | Folding & Expandable Steps

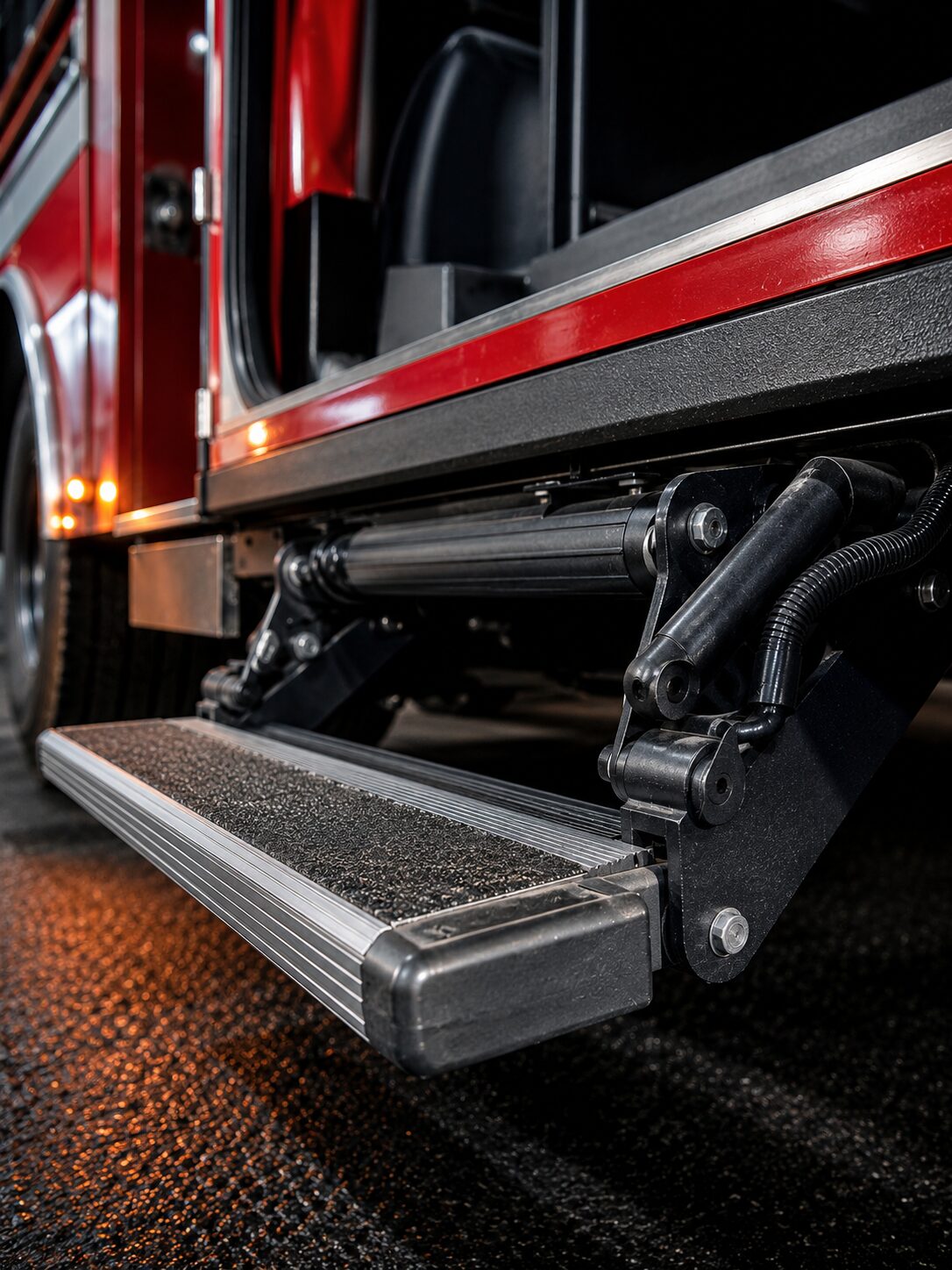

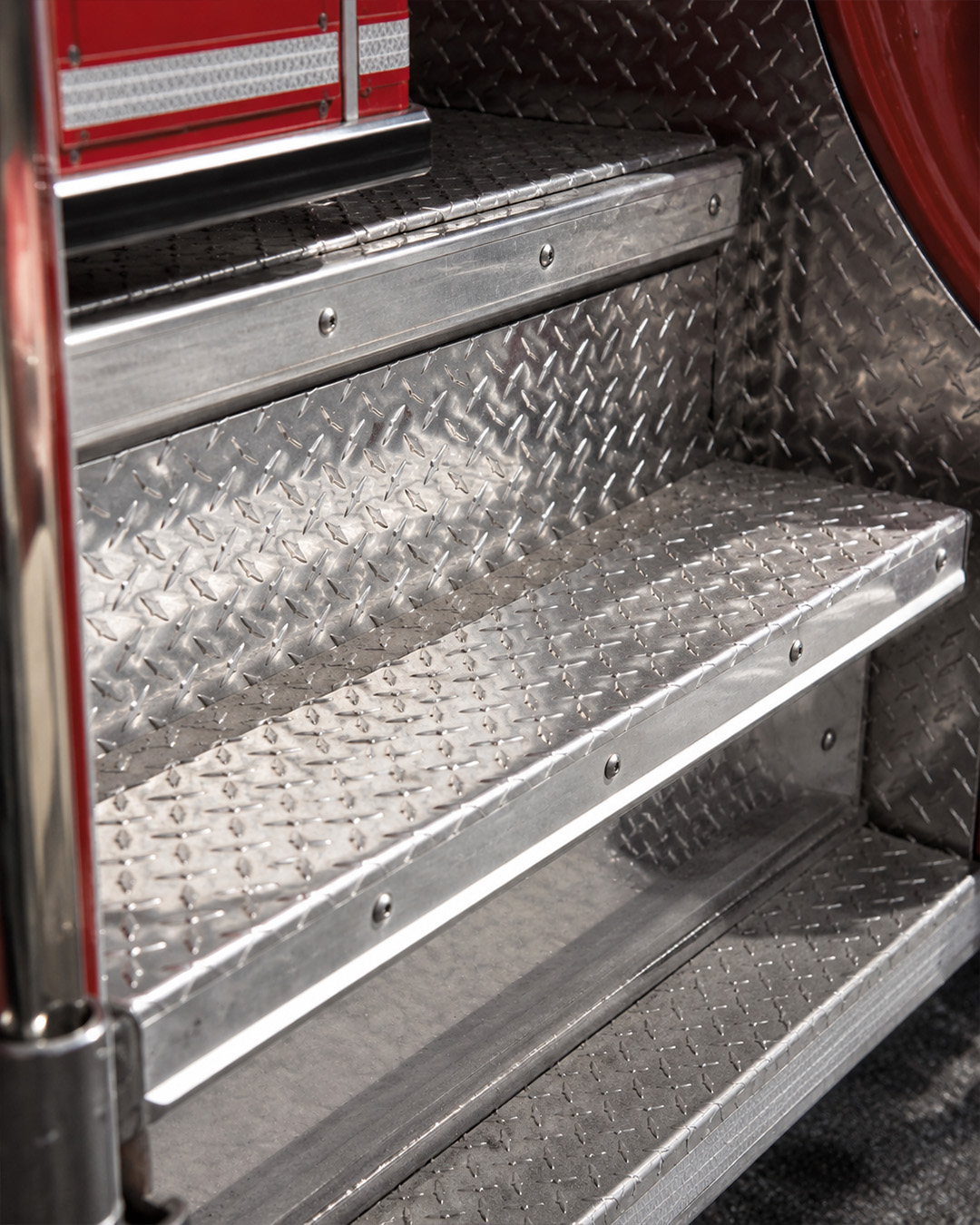

Folding & Expandable Steps

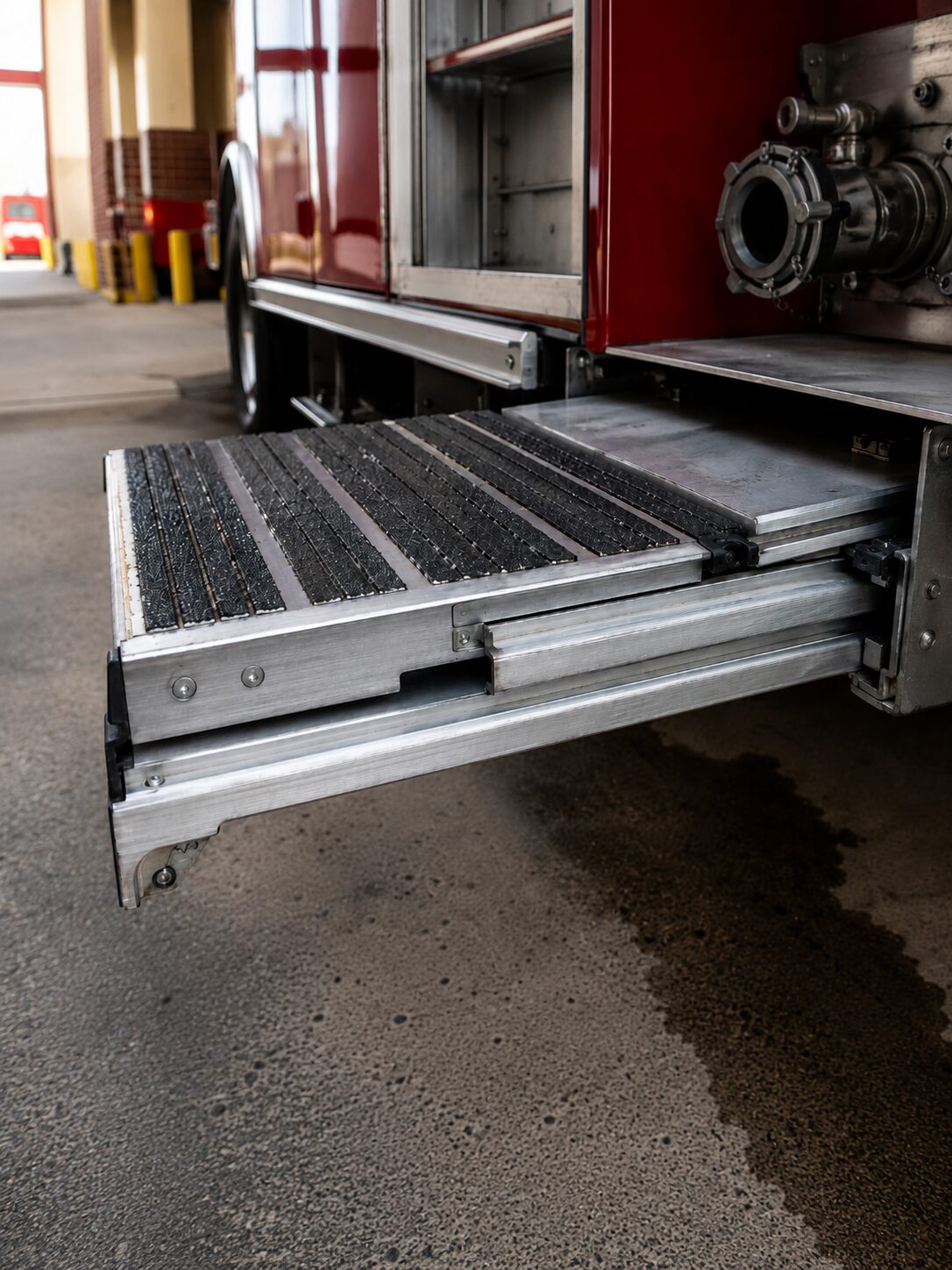

Spring-return folding steps and telescoping expandable steps that deploy a stable foothold underfoot, then tuck or retract flush against the body — rated for full turnout-gear loads. NFPA-compliant, chrome-plated, with optional integrated LED lighting.
Choose Your Configuration
Core Builds

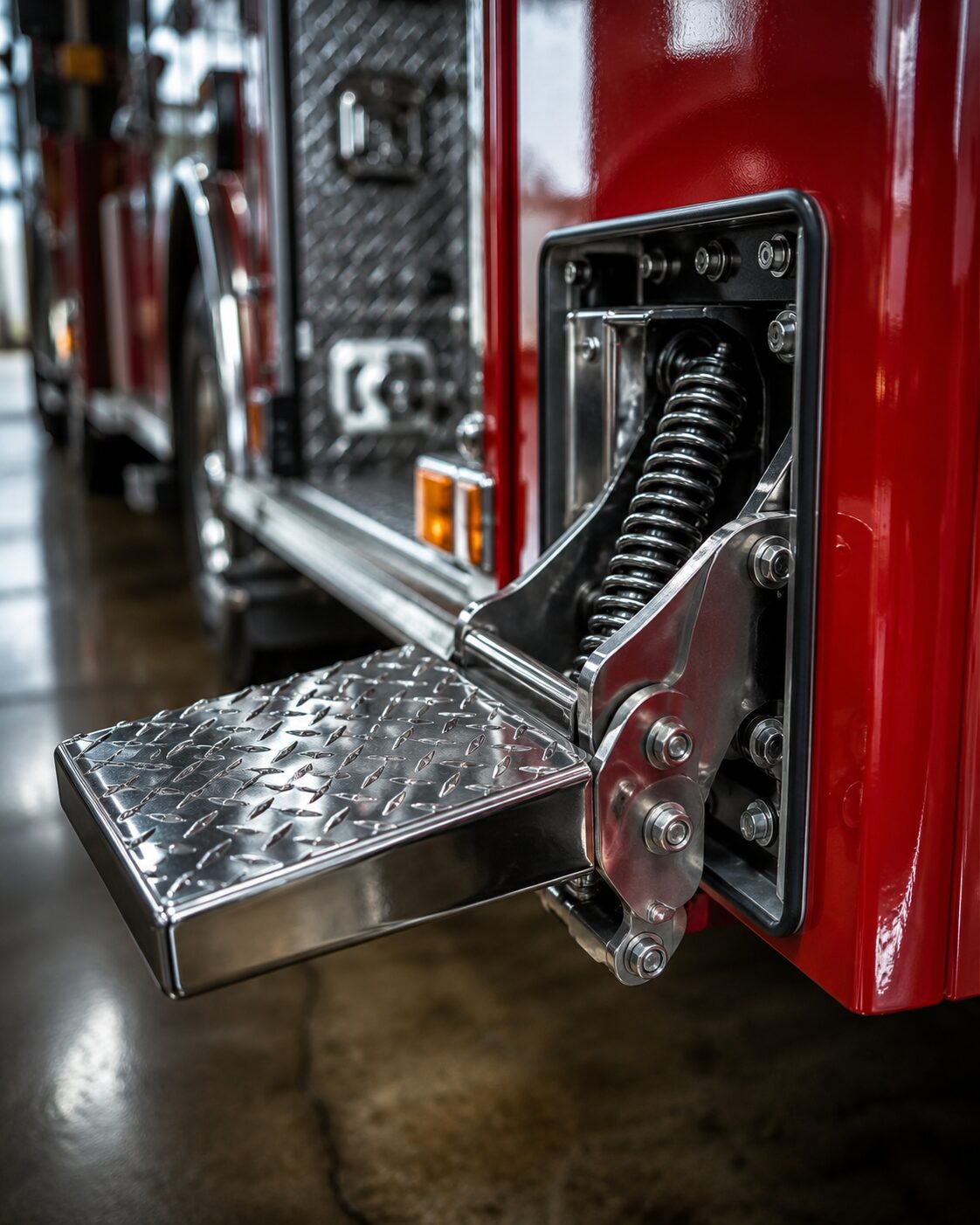

Folding Step
Available Options
Part Numbers
Folding & Expandable Steps Features
Built to Spec. Finished to Last.
Performance
- –Full-load spring return
- –Slip-resistant diamond-plate tread
- –Chrome-plated, corrosion-resistant
- –NFPA-compliant
Configurations
- –Folding or telescoping
- –Unlit, top LED, or dual LED
- –Manual or powered actuation
- –Single or multi-stage travel
Installation
- –Bolt-on, weld, or channel mount
- –Sized to your body panel
- –Matched to your access height
- –Retro-fit ready
Full Part Reference
3 Folding Step Configurations
NFPA-compliant, chrome-plated folding steps. Expandable step configurations are built to order — contact us for a spec. Every part number ships built-to-order and retro-fit ready. Search the list, then print or save it as a PDF.
| Part # | Description | Lighting | NFPA | Finish |
|---|---|---|---|---|
| 101953-2 | Folding Step | No lights | Yes | Chrome plated |
| 101953-1 | Folding Step | Top white LED only | Yes | Chrome plated |
| 101953-3 | Folding Step | Dual top & bottom white LED | Yes | Chrome plated |
PRODUCTS | Grab Rails

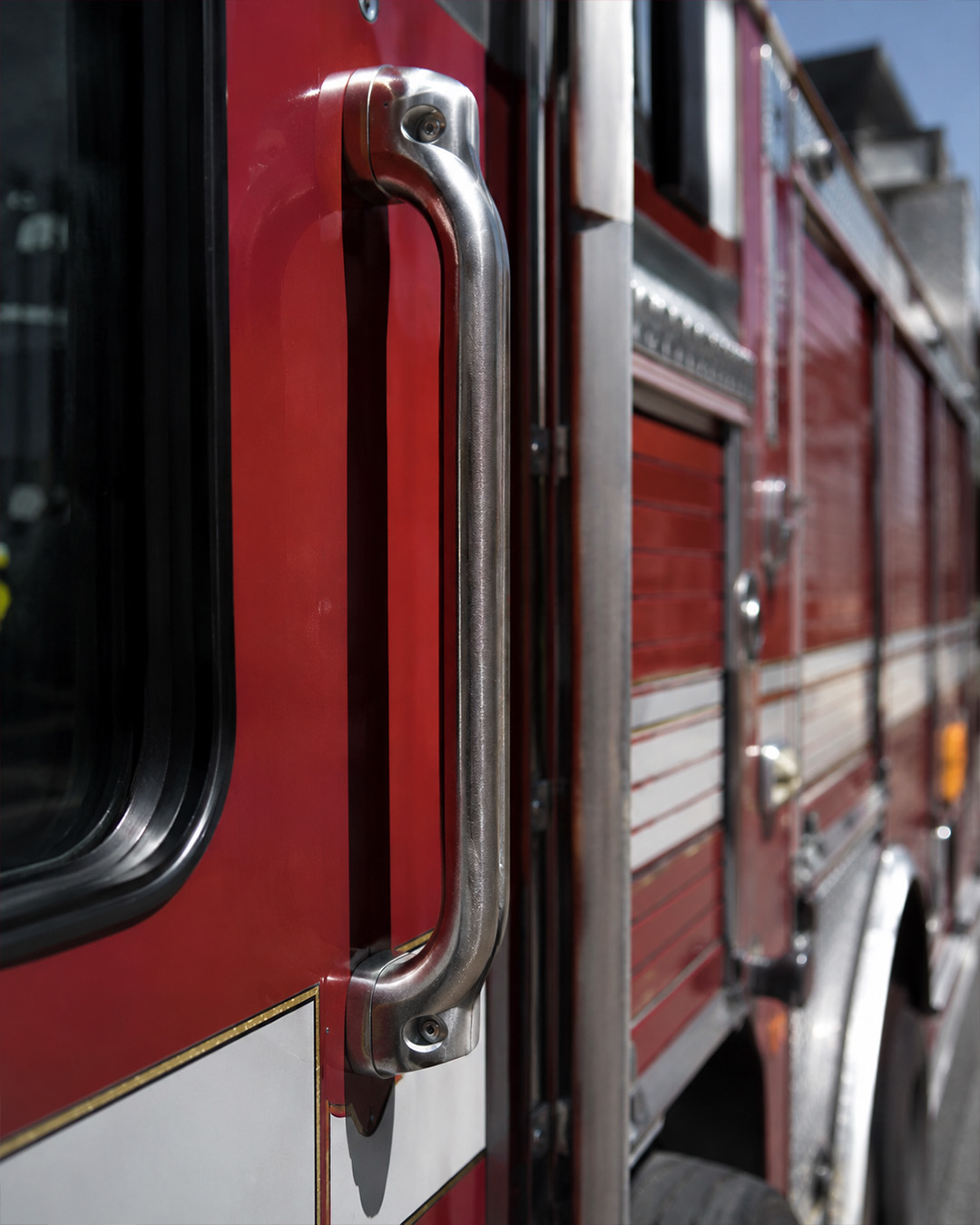

Grab Rails & Handles

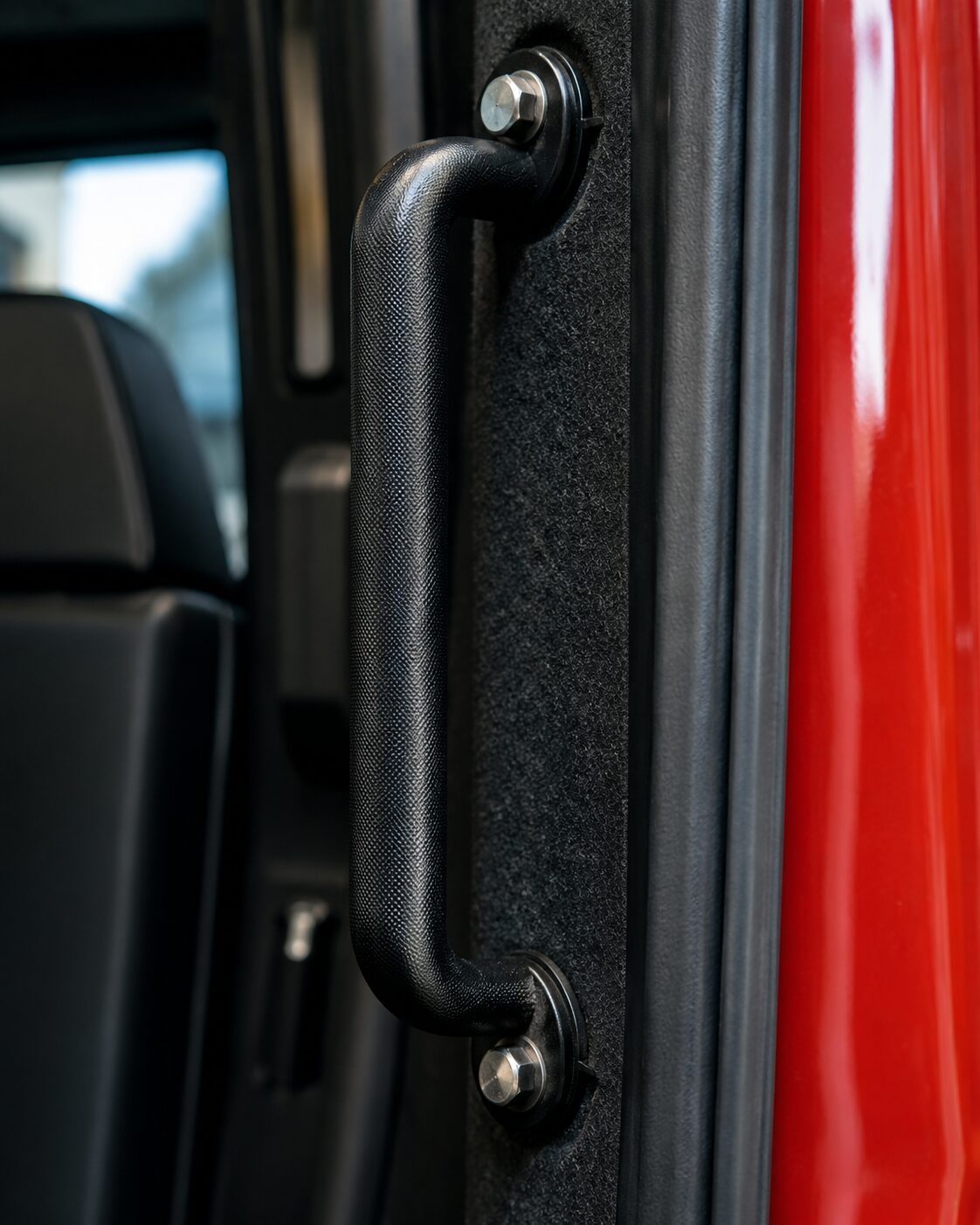

Knurled grab rails and handles bent, finished, and mounted for a confident hold on every climb and dismount.
Choose Your Configuration
Core Builds

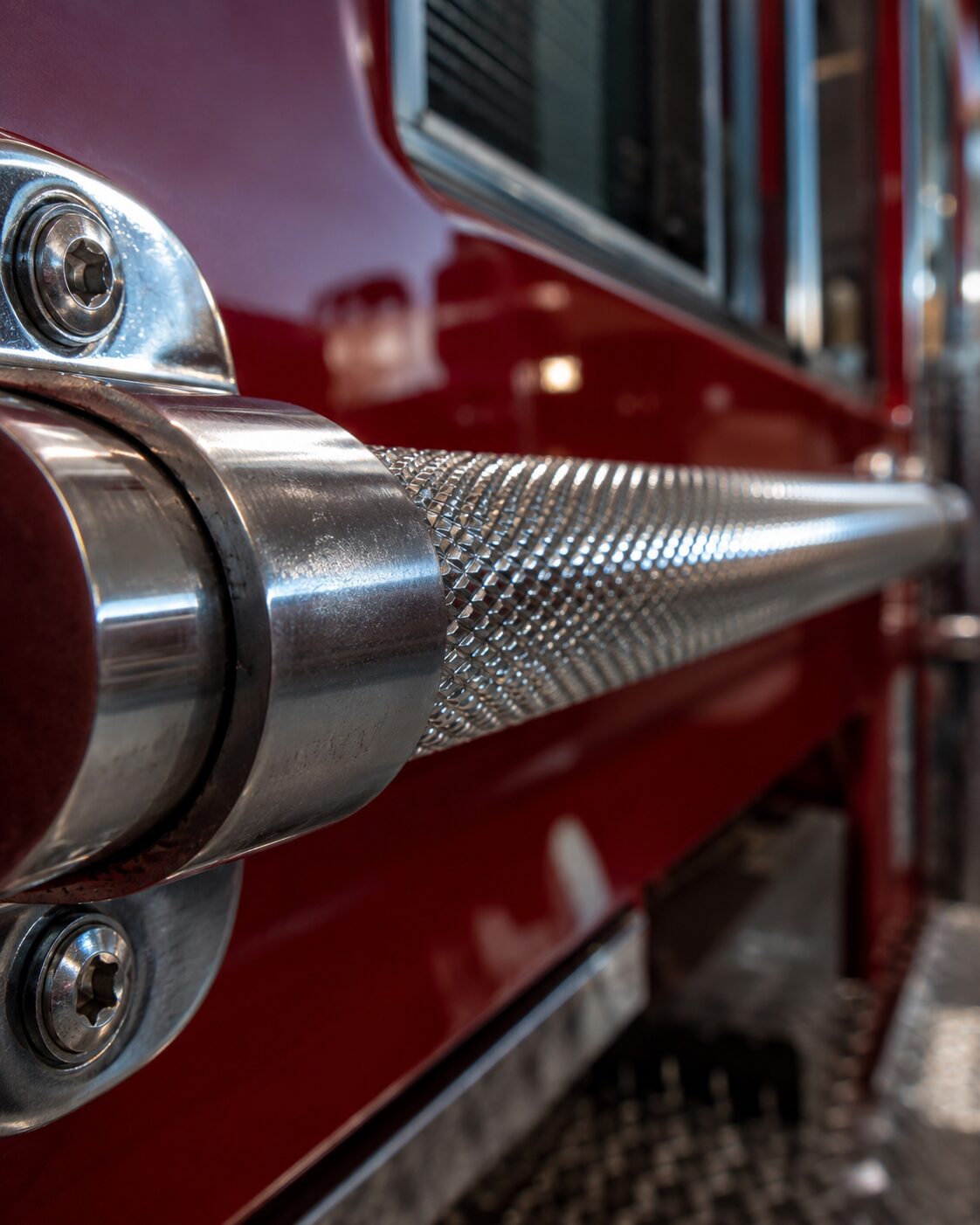

Straight Grab Rail
Available Options
Grab Rails Features
Built to Spec. Finished to Last.
Performance
- –Knurled, glove-friendly grip
- –Anchored to pull hard
- –Finished smooth, edge to edge
Configurations

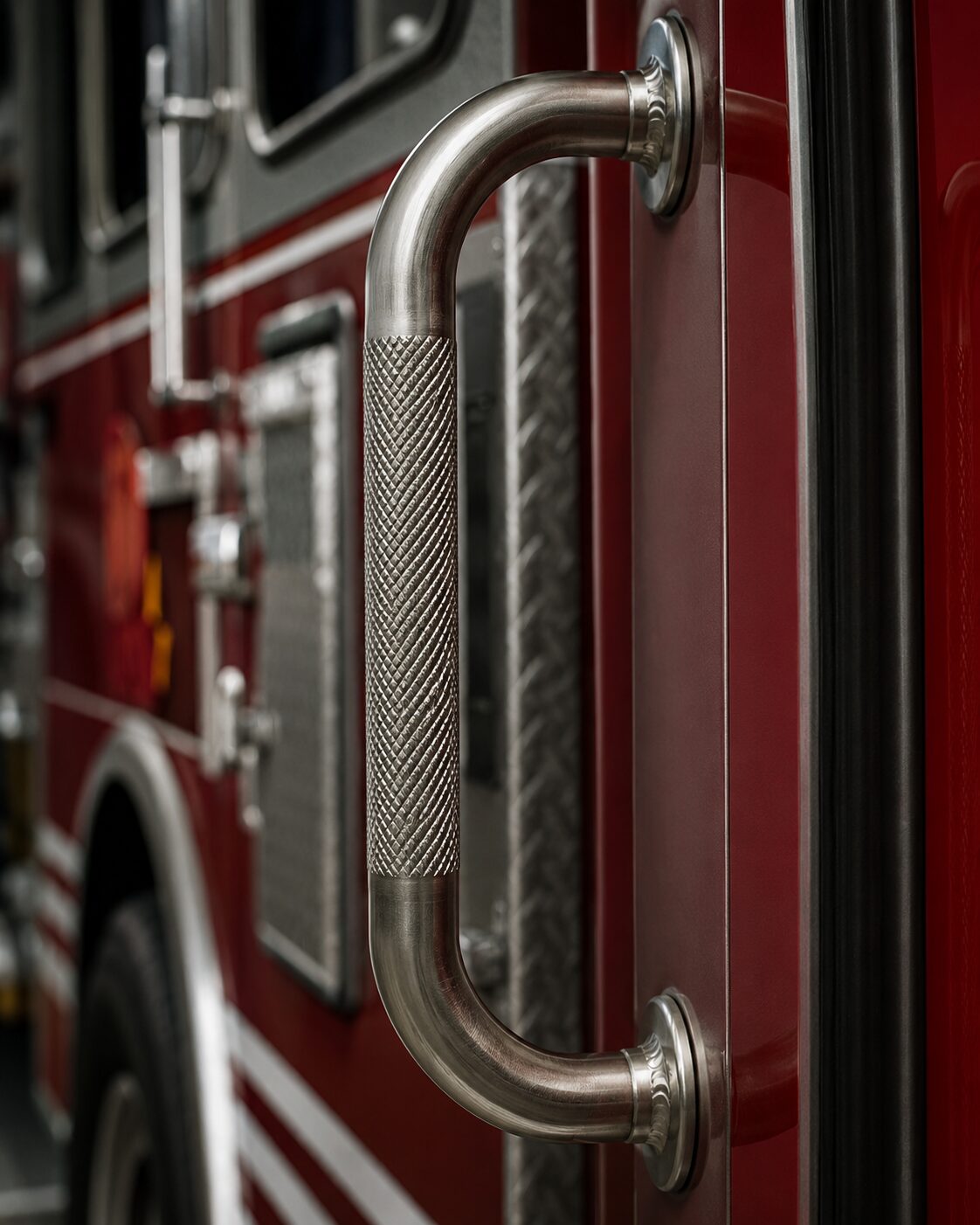

- –Straight, bent, or radius
- –1" or 1.25" diameter
- –Diamond, straight, or smooth grip
- –Standoff or interior mounts
Installation
- –Flanged standoff, weld, or thru-bolt
- –Cut to your length
- –Sealed end caps
PRODUCTS | Operator Panels

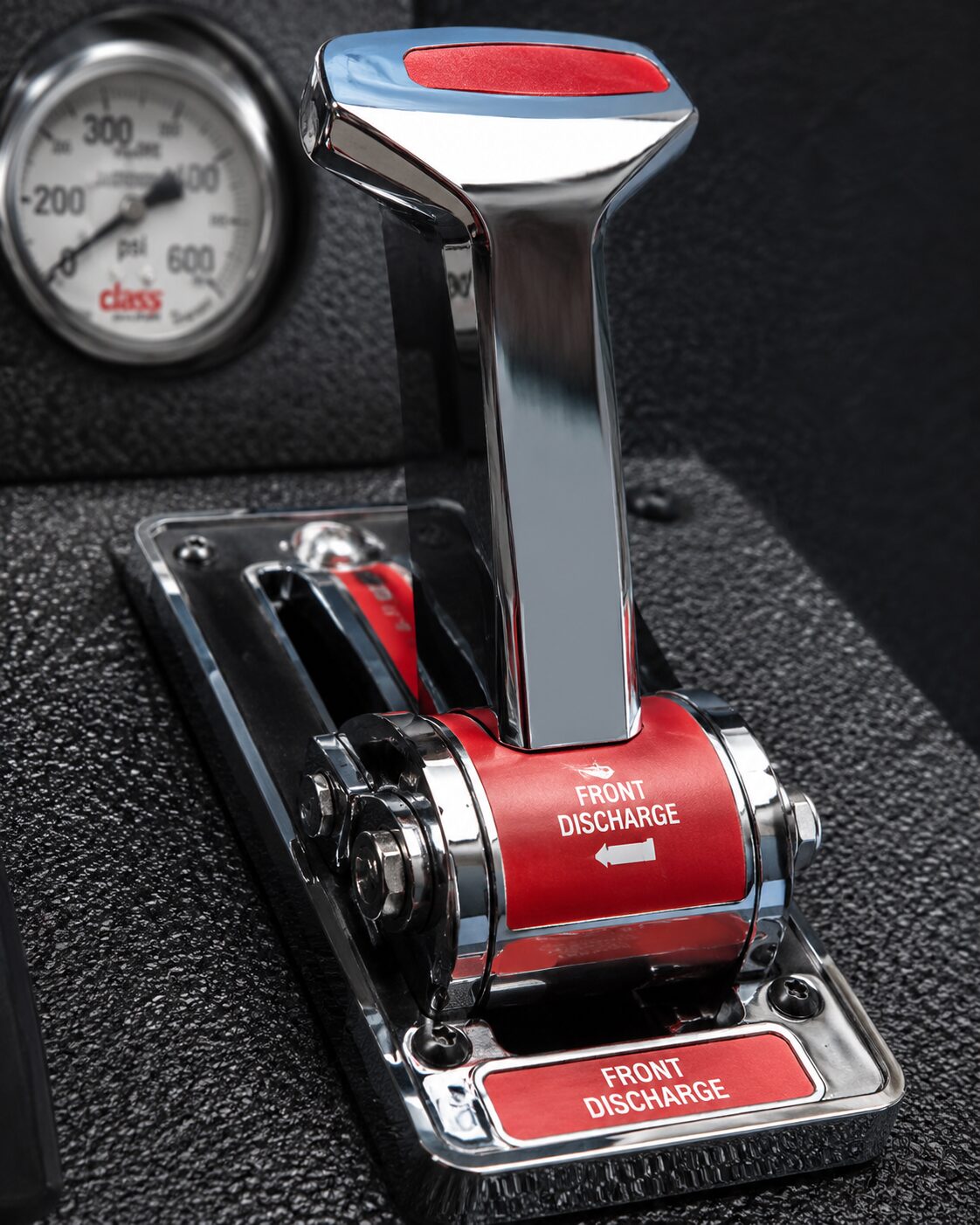

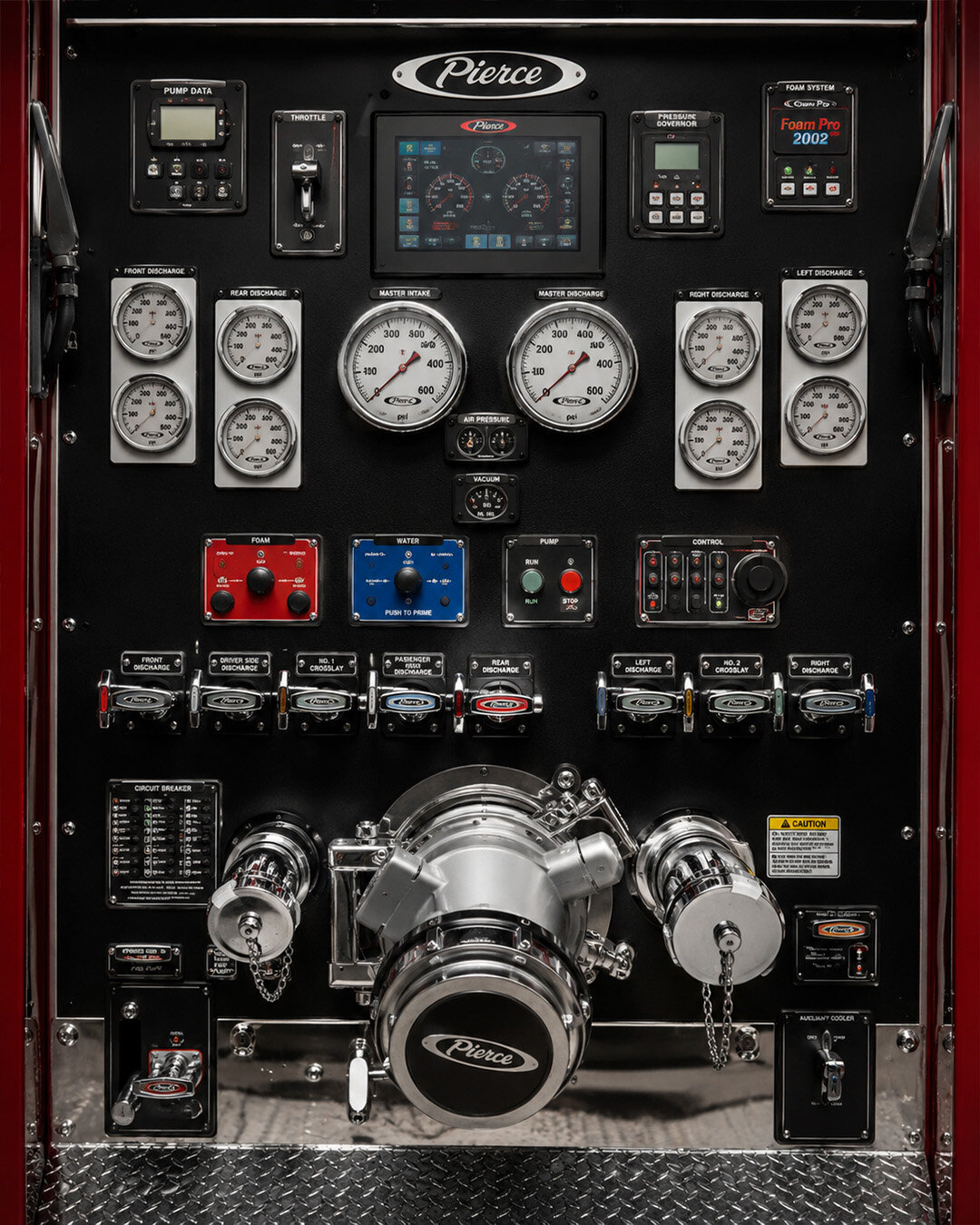

Operator Panels
Complete pump panel assemblies and sub-assemblies — laid out, machined, engraved, and assembled so the pump operator finds every valve, gauge, and switch at a glance. From full operator faces to discrete gauge and switch sub-panels.
Choose Your Configuration
Core Builds
Side-Mount Pump Panel
Available Options
Operator Panels Features
Built to Spec. Finished to Last.
Performance
- –Logical, operator-first layout
- –Engraved, lasting labels
- –Sealed, serviceable build
Configurations
- –Full assemblies or sub-assemblies
- –Side, top, or rear mount
- –Engraved, screen-print, or backlit
- –Brushed, anodized, or powder-coat
Installation
- –Machined to your plumbing
- –Gasketed cutouts
- –Back-access service
PRODUCTS | Engine Covers & Interior
Engine Covers & Interior
Engine and doghouse covers, switch panels, interior trim, and cab consoles fabricated, finished, and assembled for a clean, durable, sound-managed cab.
Choose Your Configuration
Core Builds

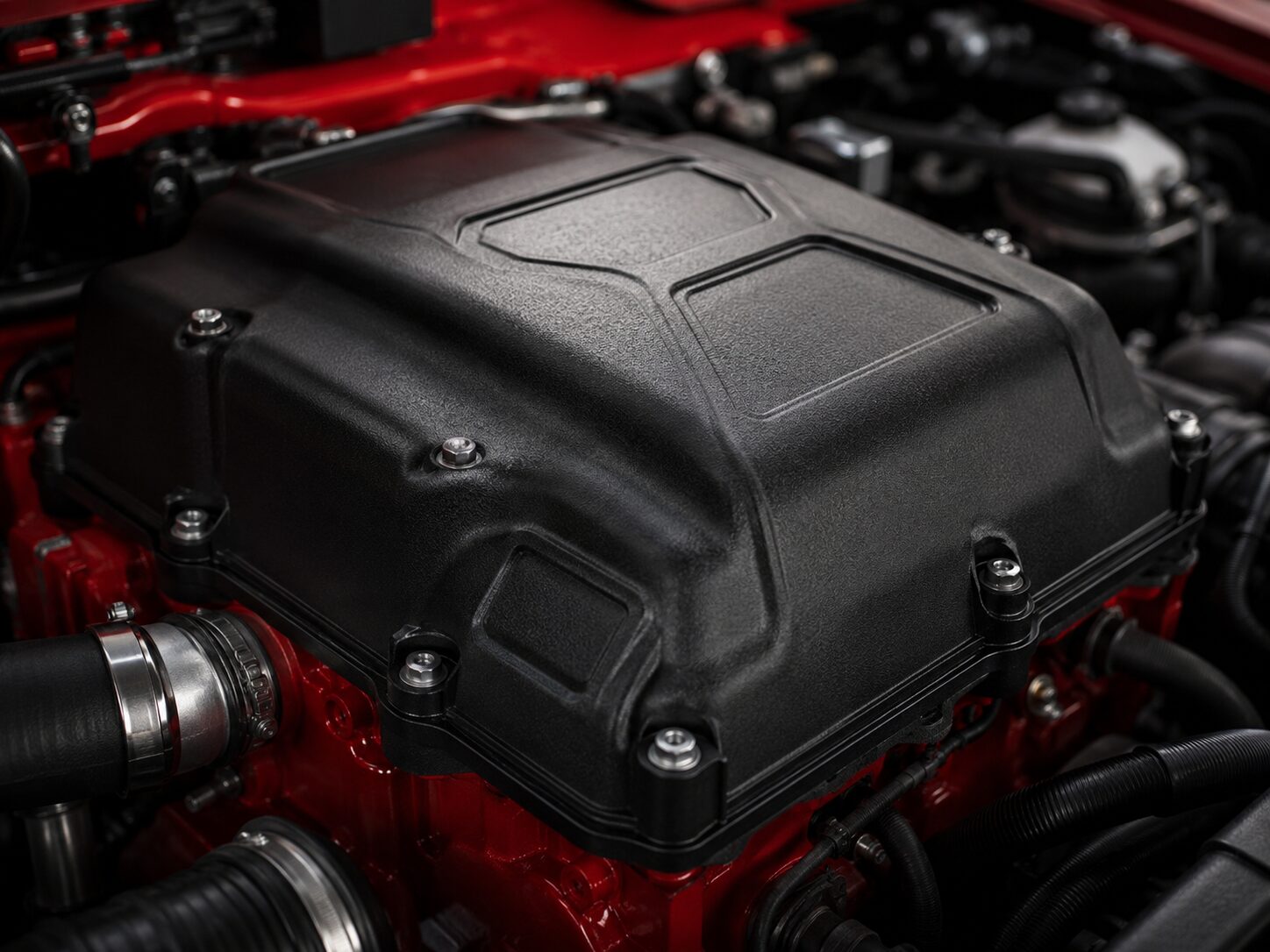

Engine / Doghouse Cover
Available Options
Engine Covers & Interior Features
Built to Spec. Finished to Last.
Performance
- –Heat & sound insulation
- –Durable, cleanable finish
- –Sealed, rattle-free fit
Configurations
- –Engine & doghouse covers
- –Switch & control panels
- –Interior trim panels
- –Cab consoles & mounts
Installation
- –Machined to your cab
- –Hinged or removable access
- –Retro-fit ready
PRODUCTS | Logos, Badging & Plaques
Logos, Badging & Plaques
Cast, etched, and finished badges, nameplates, plaques, and labels that carry your department or build identity with showroom-grade detail.
Choose Your Configuration
Core Builds
Cast Metal Badge
Available Options
Logos, Badging & Plaques Features
Built to Spec. Finished to Last.
Performance
- –Showroom-grade finish
- –Color that holds outdoors
- –Crisp, deep relief
Configurations
- –Cast, etched, machined, or formed
- –Zinc, aluminum, stainless, brass
- –Polished, brushed, plated, painted
- –Enamel, screen-print, or domed
Installation
- –Adhesive, stud, or fastener
- –Made to your artwork
- –Production-ready
PRODUCTS | Valve Controls
Valve Controls
Valve control handles, levers, and linkages machined for a smooth throw, a clear indication, and a positive hold under pressure.
Choose Your Configuration
Core Builds
Push-Pull Control
Available Options
Valve Controls Features
Built to Spec. Finished to Last.
Performance
- –Smooth, repeatable throw
- –Positive detent & lock
- –Clear position indication
Configurations

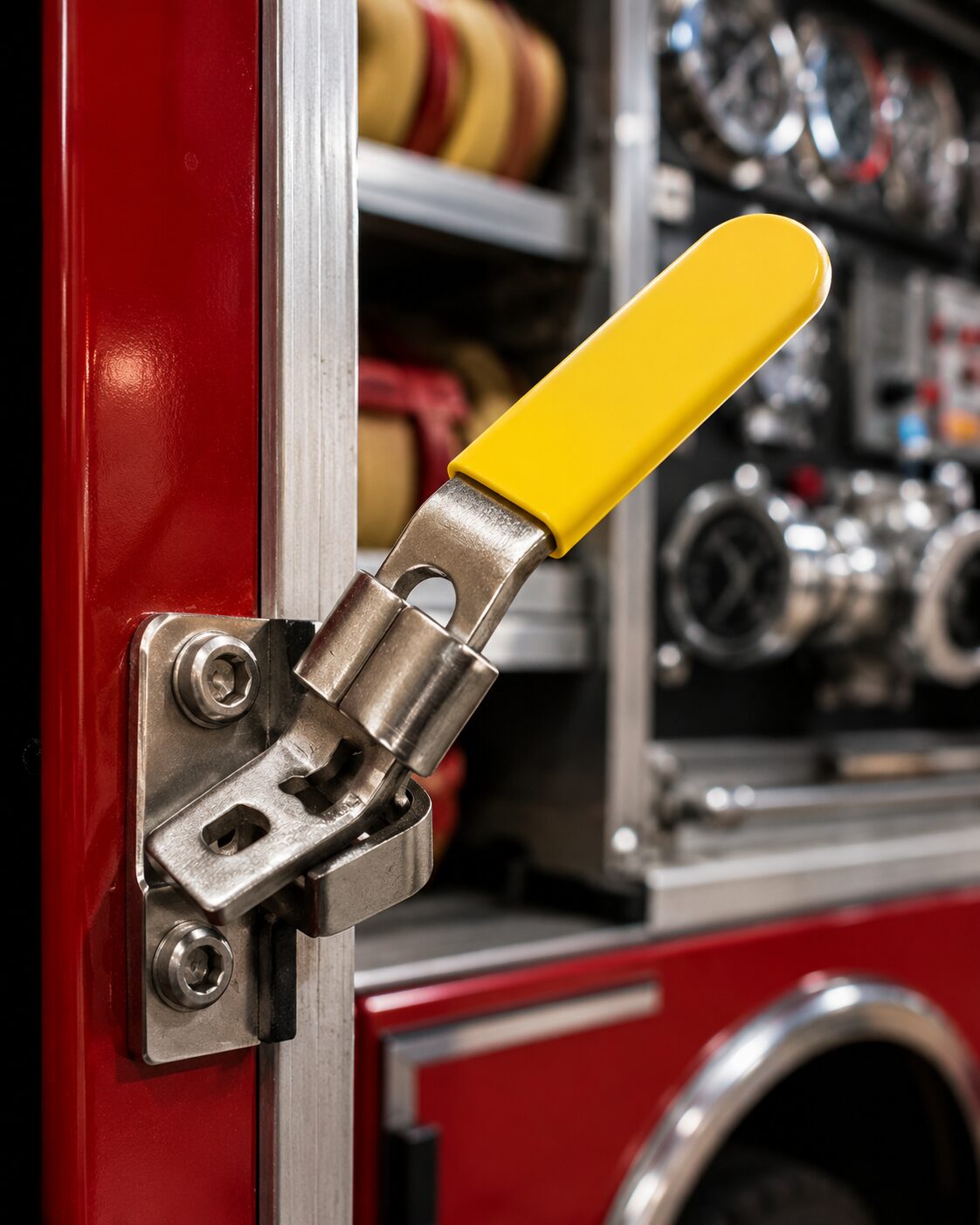

- –Push-pull, lever, or quarter-turn

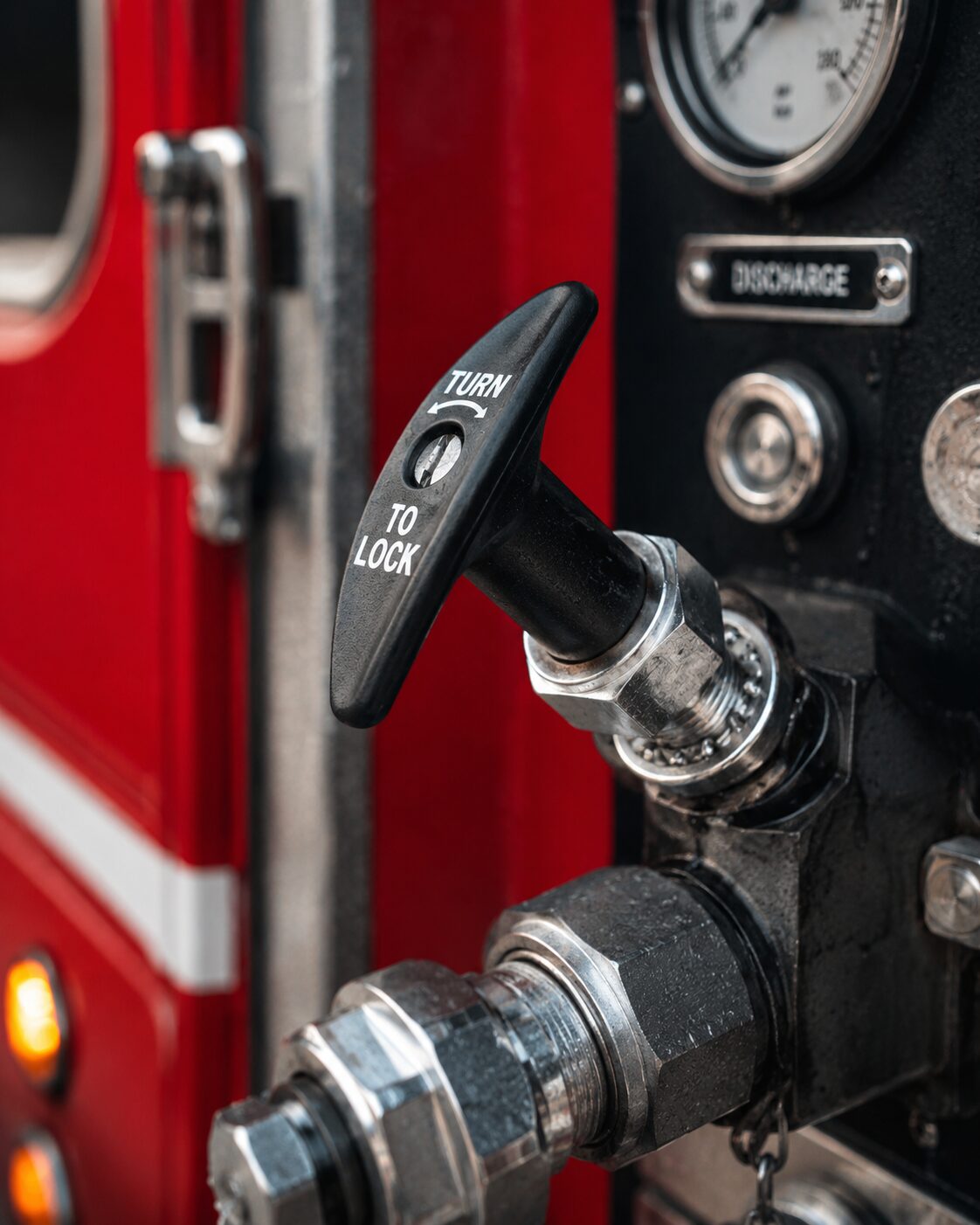

- –Tee & wheel handles
- –Remote rod & cable linkage
- –Color-coded + engraved labels
Installation
- –Machined to your valve
- –Panel-matched throw
- –Retro-fit ready
Full Part Reference
Push / Pull Cable Control
Push Pull, Smooth Bezel — Manual Valve Control. Every part ships built-to-order and retro-fit ready. Search the list, then print or save it as a PDF.
Stroke Length
9.75"
Bezel
Smooth
Finish
Chrome Plated
Thread
1/2" × 20
| Part # | Swivel End | Thread | Stroke | Finish |
|---|---|---|---|---|
| 101972-22 | Female Thread | 1/2" × 20 | 9.75" | Chrome Plated |
| 101972-46 | Male Thread | 1/2" × 20 | 9.75" | Chrome Plated |
