Product / SCBA Compartments
SCBA Compartments
Signature 4 has provided reliable, self-contained breathing apparatuses (SCBA) to rescue vehicle manufacturers for more than ten years. These compartments are made for easy installation, withstand corrosion, and are available in various customizable configurations.
NOW AVAILABLE
tear-drop tube PROFILE
Tear-Drop Profile Flex-Tube Configuration
Tear-drop profile flex-tube configuration for optimal abrasion-less SCBA, Extinguisher, and Water-can storage. Available in single, double, or triple tube builds.
scba compartment features
Installation
+ One-piece drop-in plug and play assembly for quicker and easier installation
+ Suitable for any apparatus type
+ Excellent for retro-fit mounting (body cut-out and mounting template provided)
Performance
+ 304 Stainless Steel hardware construction
+ Non-abrasive robust molded poly-compartment that protects cylinder text and graphic surfaces
+ Positive latching devices
+ Door, latch, and trim gaskets provided for added corrosion resistance
Configurations
+ Right and left side configurations available with straight or 5 degree angled tubes
+ 1, 2, 3, and 4 bottle configurations
+ Customs available upon request
Technical Specs
Single (1) Cylinder 101252
Available Options
LENGTHS (inches): 23”, 25”, 26.5”
ANGLES: 0°, 5°
HINGE LOCATION: Right Hand or Left Hand
LATCH STYLE: Chrome, Black Flush, Black Sealed
ACCESSORIES: Door Gasket, Latch Gasket, and Trim Gasket
DOOR FINISH: Brushed or Polished
CUSTOMIZABLE: Yes
Double (2) Cylinder - Single Wide Door 101400
Available Options
LENGTHS (inches): 25”, 26.5”
ANGLES: 0°, 5°
HINGE LOCATION: Right Hand or Left Hand
LATCH STYLE: Chrome, Black Flush, Black Sealed
ACCESSORIES: Door Gasket, Latch Gasket, and Trim Gasket
DOOR FINISH: Brushed or Polished
CUSTOMIZABLE: Yes
Double (2) Cylinder - Wide Drop Down Door 102069
Available Options
LENGTH (inches): 26”
ANGLES: 0°
HINGE LOCATION: Bottom
LATCH STYLE: Chrome, Black Flush
ACCESSORIES: Door Gasket, Latch Gasket, and Trim Gasket
DOOR FINISH: Brushed or Polished
CUSTOMIZABLE: Yes
Single (1) Cylinder & Fuel Fill - Single Door 101846
Available Options
LENGTH (inches): 25”
ANGLES: 0°
HINGE LOCATION: Right Hand or Left Hand
LATCH STYLE: Black Sealed
ACCESSORIES: Door Gasket, Latch Gasket, and Trim Gasket
FUEL FILL HOUSING: HDPE or SS
DOOR FINISH: Brushed or Polished
CUSTOMIZABLE: Yes

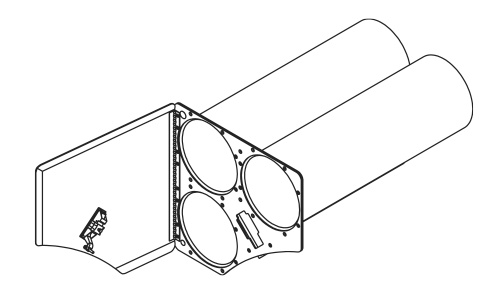

Triple (3) Cylinder - Single Wide Door 101411
Available Options
LENGTH (inches): 23”, 25”, 26.5”
ANGLES: 0°, 5°
HINGE LOCATION: Right Hand or Left Hand
LATCH STYLE: Black Sealed, Black Flush, Chrome
ACCESSORIES: Door Gasket, Latch Gasket, and Trim Gasket
DOOR FINISH: Brushed or Polished
CUSTOMIZABLE: Yes
Double (2) Cylinder - Custom 101895
Available Options
LENGTH (inches): 26.5”
ANGLES: 0°
LATCH STYLE: Chrome
ACCESSORIES: Door Gasket, Latch Gasket, and Trim Gasket
DOOR FINISH: Brushed or Polished
CUSTOMIZABLE: Yes
